CyberDefender - CorporateSecrets (Part 3)

Challenge: https://cyberdefenders.org/blueteam-ctf-challenges/33 Part 1: https://hackmd.io/@SBK6401/r18z7VIm6 Part 2: https://hackmd.io/@SBK6401/ByFhEE8X6 Part 4: https://hackmd.io/@SBK6401/H1rAEV87p

:::spoiler TOC [TOC] :::

Tools:

• FTK Imager
• Registry Explorer
• RegRipper
• HxD
• DB Browser for SQLite
• HindSight
• Event Log Explorer
• MFTDump

==Q19==

Which user installed LibreCAD on the system?

Exploit

我是直接看該檔案在哪個user的資料夾來判斷，當然這個做法有點問題

:::spoiler Flag Flag: miriam.grapes :::

==Q20==

How many times “admin” logged into the system?

Recon

呈第14題

Exploit

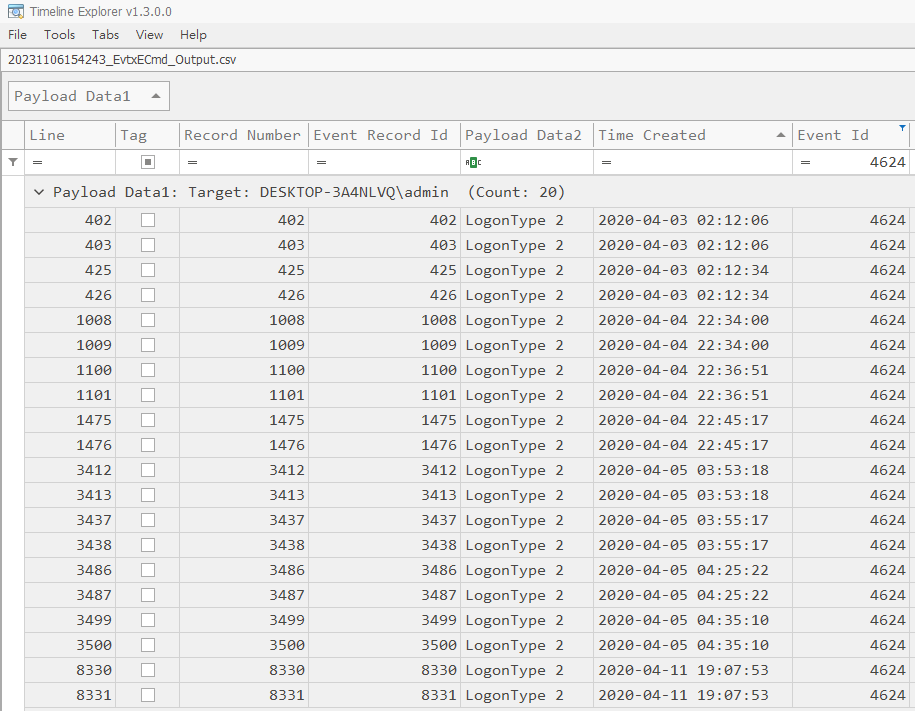

不過我不知道為甚麼答案是21，然後我只有找到20個，看了4672也沒有紀錄(怪怪的)

:::spoiler Flag Flag: 21 :::

==Q21==

What is the name of the DHCP domain the device was connected to?

Recon

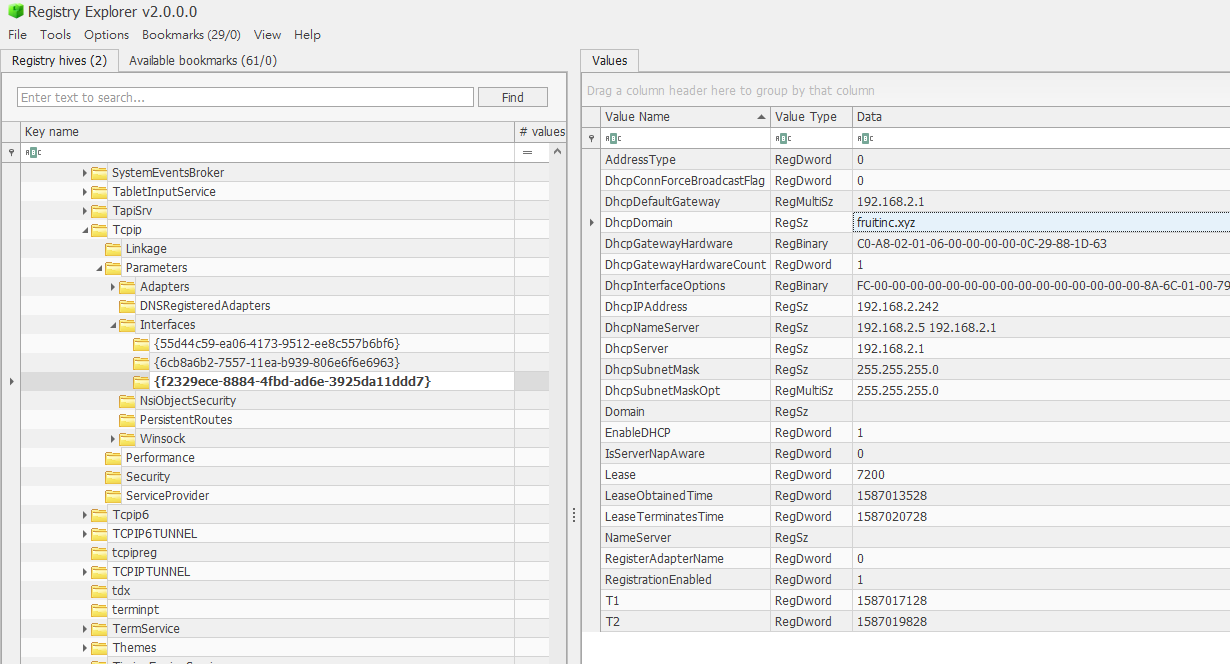

直接看SYSTEM/ControlSet001/Services/Tcpip/Parameters/Interfaces/

:::spoiler Flag Flag: fruitinc.xyz :::

==Q22==

What time did Tim download his background image? (Oh Boy 3AM . Answer in MM/DD/YYYY HH:MM format (UTC).)

Recon

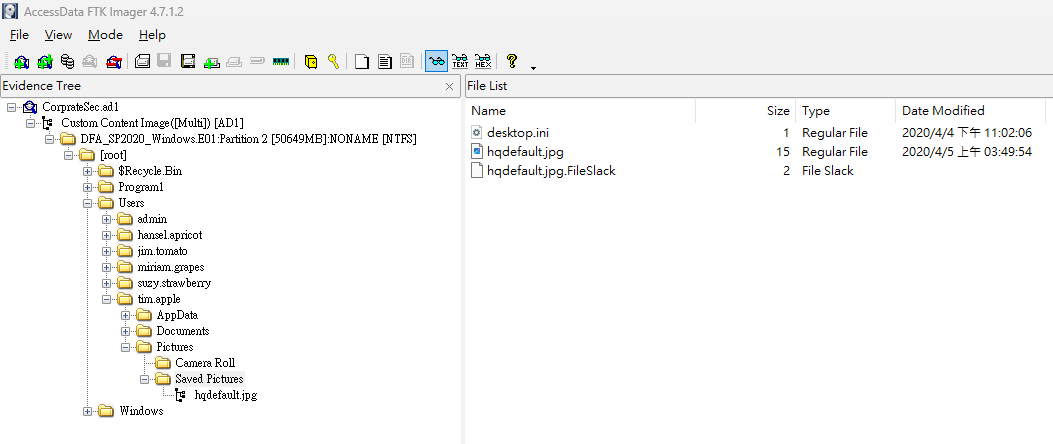

原本的直覺是像第18題一樣把db file export出來看他的網路操作行為，不過其實可以直接看他下載的file，看他的create time就好

Exploit

:::spoiler Flag Flag: 04/05/2020 03:49 :::

==Q23==

How many times did Jim launch the Tor Browser?

Exploit

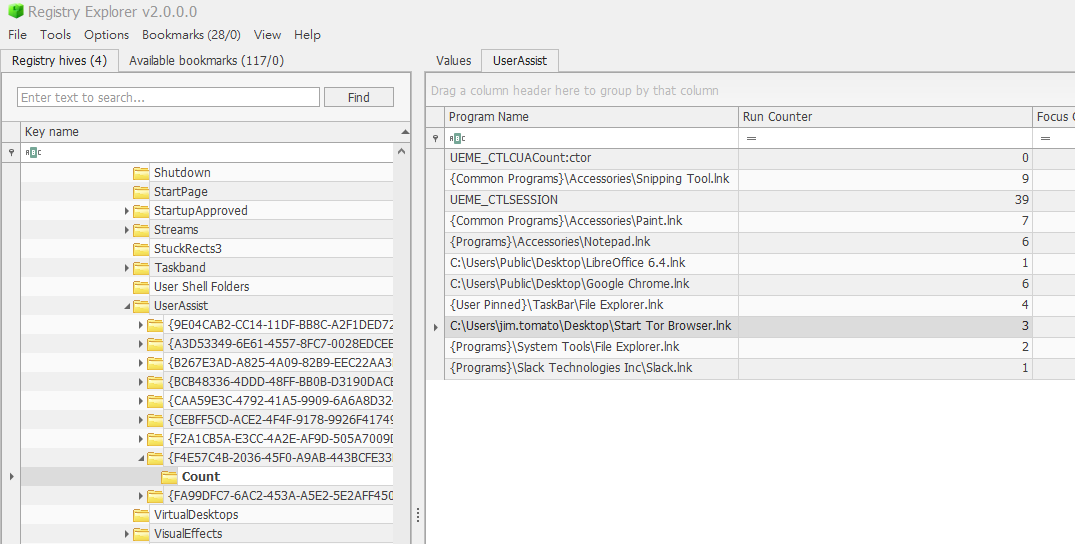

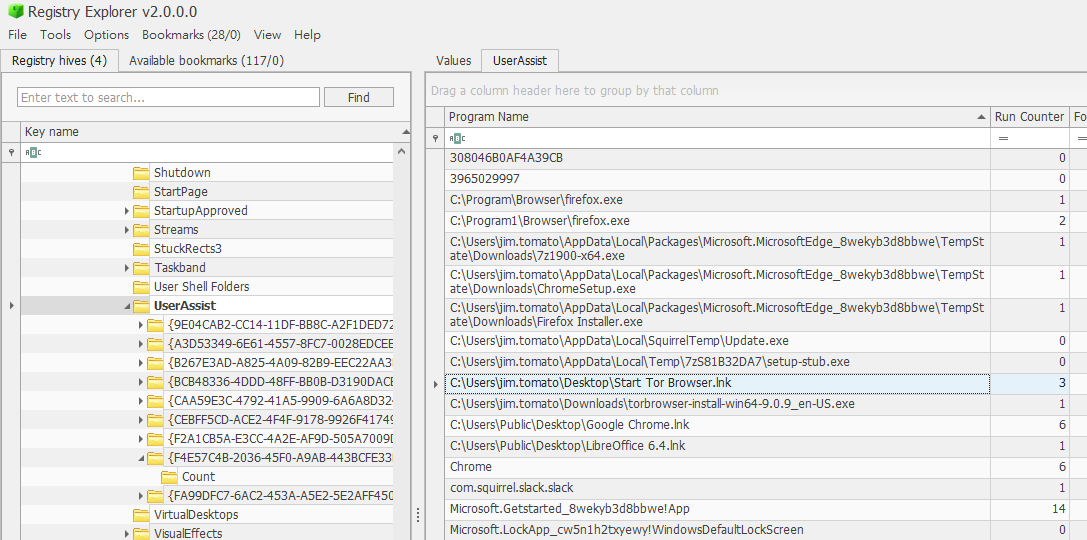

直接把Jim的NTUSER.dat export出來後用timeline explorer看userassist，不過我不確定為甚麼答案是2，因為我查到的都是3 還有另外一個方法是看prefetch，從FTK中export出TOR.EXE-4B50033F.pf，用PECmd.exe解析，但這個更怪了，結果顯示只有執行過一次，所以prefetch參考就好 :::spoiler

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

$ ./PECmd.exe -f TOR.EXE-4B50033F.pf PECmd version 1.5.0.0 Author: Eric Zimmerman (saericzimmerman@gmail.com) https://github.com/EricZimmerman/PECmd Command line: -f TOR.EXE-4B50033F.pf Keywords: temp, tmp Processing TOR.EXE-4B50033F.pf Created on: 2023-11-06 17:15:55 Modified on: 2020-04-16 04:52:40 Last accessed on: 2023-11-06 17:17:52 Executable name: TOR.EXE Hash: 4B50033F File size (bytes): 88,080 Version: Windows 10 or Windows 11 Run count: 1 Last run: 2020-04-16 04:52:30 Volume information: #0: Name: \VOLUME{01d60963b1096880-ecb16432} Serial: ECB16432 Created: 2020-04-03 02:58:03 Directories: 11 File references: 71 Directories referenced: 11 00: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1 01: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER 02: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER 03: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA 04: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR 05: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR 06: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS 07: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\GLOBALIZATION 08: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\GLOBALIZATION\SORTING 09: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32 10: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\EN-US Files referenced: 58 00: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\NTDLL.DLL 01: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\TOR.EXE (Executable: True) 02: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\KERNEL32.DLL 03: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\KERNELBASE.DLL 04: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\LOCALE.NLS 05: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\ADVAPI32.DLL 06: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\MSVCRT.DLL 07: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\SECHOST.DLL 08: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\RPCRT4.DLL 09: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\SHELL32.DLL 10: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\CFGMGR32.DLL 11: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\UCRTBASE.DLL 12: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\SHCORE.DLL 13: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\COMBASE.DLL 14: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\BCRYPTPRIMITIVES.DLL 15: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\WINDOWS.STORAGE.DLL 16: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\SHLWAPI.DLL 17: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\GDI32.DLL 18: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\GDI32FULL.DLL 19: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\MSVCP_WIN.DLL 20: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\USER32.DLL 21: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\WIN32U.DLL 22: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\KERNEL.APPCORE.DLL 23: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\POWRPROF.DLL 24: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\PROFAPI.DLL 25: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\WS2_32.DLL 26: \VOLUME{01d60963b1096880-ecb16432}\$MFT 27: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\IPHLPAPI.DLL 28: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\LIBSSP-0.DLL 29: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\LIBEVENT-2-1-6.DLL 30: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\ZLIB1.DLL 31: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\LIBWINPTHREAD-1.DLL 32: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\LIBSSL-1_1-X64.DLL 33: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\TOR\LIBCRYPTO-1_1-X64.DLL 34: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\CRYPTSP.DLL 35: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\RSAENH.DLL 36: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\BCRYPT.DLL 37: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\GLOBALIZATION\SORTING\SORTDEFAULT.NLS 38: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\CRYPTBASE.DLL 39: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\IMM32.DLL 40: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\TORRC-DEFAULTS 41: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\TORRC 42: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\MSWSOCK.DLL 43: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\STATE 44: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CONTROL_AUTH_COOKIE.TMP (Keyword: True) 45: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\GEOIP 46: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\GEOIP6 47: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CACHED-CERTS 48: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\EN-US\KERNELBASE.DLL.MUI 49: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CACHED-MICRODESC-CONSENSUS 50: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CACHED-MICRODESCS 51: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CACHED-MICRODESCS.NEW 52: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\UNVERIFIED-MICRODESC-CONSENSUS 53: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\STATE.TMP (Keyword: True) 54: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\NSI.DLL 55: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\DHCPCSVC6.DLL 56: \VOLUME{01d60963b1096880-ecb16432}\WINDOWS\SYSTEM32\DHCPCSVC.DLL 57: \VOLUME{01d60963b1096880-ecb16432}\PROGRAM1\BROWSER\TORBROWSER\DATA\TOR\CACHED-MICRODESC-CONSENSUS.TMP (Keyword: True) ---------- Processed TOR.EXE-4B50033F.pf in 0.04772100 seconds ----------

:::

:::spoiler Flag Flag: 2 :::

==Q24==

There is a png photo of an iPhone in Grapes’s files. Find it and provide the SHA-1 hash.

Recon

看了第一個hint才知道有stego的成分在裡面，首先要找到藏圖片的檔案是哪一張，我判斷是samplePhone.jpg這一張

Exploit

有了圖片之後就是最擅長的misc基本操作，結果在binwalk的時候發現有附加檔案在裡面，就直接foremost提出來

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

$ binwalk -e samplePhone.jpg DECIMAL HEXADECIMAL DESCRIPTION -------------------------------------------------------------------------------- 5962 0x174A PNG image, 1000 x 1000, 8-bit/color RGBA, non-interlaced 6003 0x1773 Zlib compressed data, best compression $ foremost -v samplePhone.jpg Foremost version 1.5.7 by Jesse Kornblum, Kris Kendall, and Nick Mikus Audit File Foremost started at Tue Nov 7 01:32:54 2023 Invocation: foremost -v samplePhone.jpg Output directory: /mnt/d/NTU/CTF/CyberDefenders/CorporateSecrets/Exported File/output Configuration file: /etc/foremost.conf Processing: samplePhone.jpg |------------------------------------------------------------------ File: samplePhone.jpg Start: Tue Nov 7 01:32:54 2023 Length: 164 KB (167947 bytes) Num Name (bs=512) Size File Offset Comment 0: 00000011.png 158 KB 5962 (1000 x 1000) *| Finish: Tue Nov 7 01:32:54 2023 1 FILES EXTRACTED png:= 1 ------------------------------------------------------------------ Foremost finished at Tue Nov 7 01:32:54 2023 $ cd output/png $ file * 00000011.png: PNG image data, 1000 x 1000, 8-bit/color RGBA, non-interlaced

:::info 也可以像¹直接用$ binwalk --dd=".*" samplePhone.jpg，一樣可以解壓縮出原本的圖片 :::

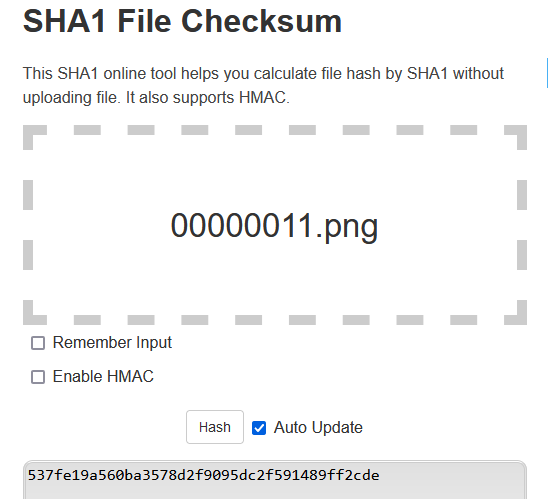

:::spoiler Flag Flag: 537fe19a560ba3578d2f9095dc2f591489ff2cde :::

==Q25==

When was the last time a docx file was opened on the device? (An apple a day keeps the docx away. Answer in UTC, YYYY-MM-DD HH:MM:SS)

Recon

我原本的直覺是想可以parse $MFT或是該檔案的lnk去看他的改動時間，但很不幸的MFT沒有這筆資料(?)，另外也沒有lnk檔案，所以只能通靈，以下解題過程是參考解完的hint

Exploit

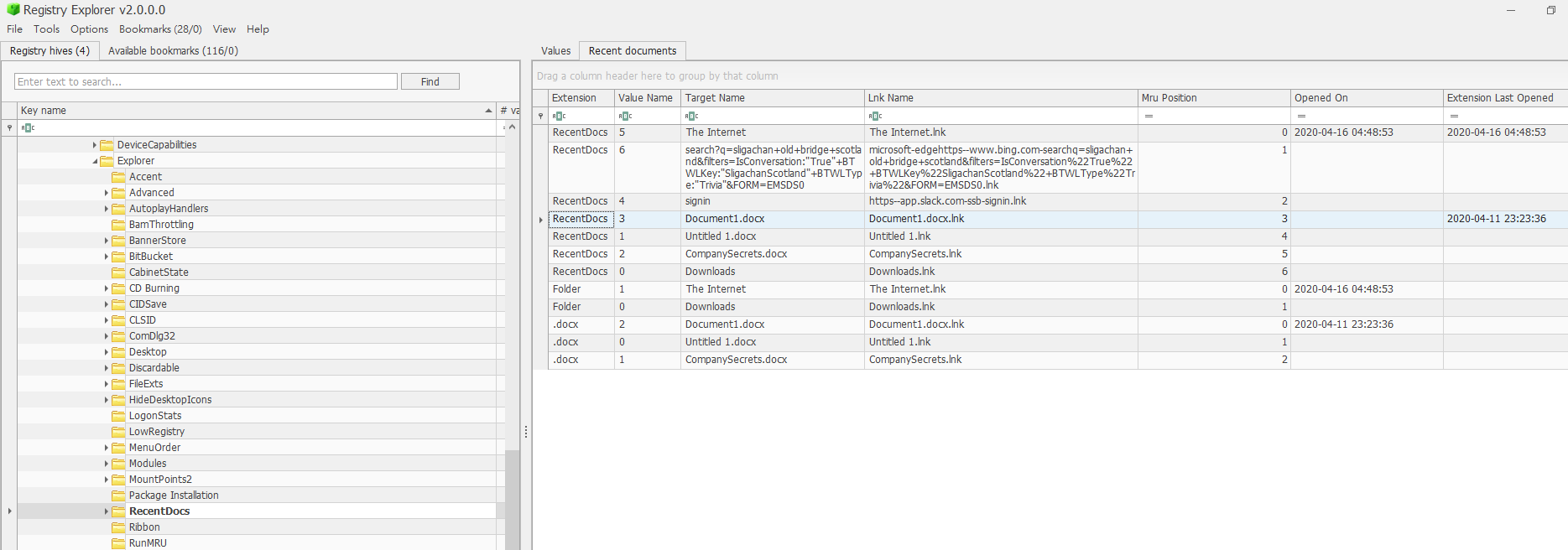

直接看RecentDocs的資訊就找的到了，該紀錄在Jim的NTUSER.DAT中，Software\Microsoft\Windows\CurrentVersion\Explorer\RecentDocs

:::spoiler Flag Flag: 2020-04-11 23:23:36 :::

==Q26==

How many entries does the MFT of the filesystem have?

Exploit

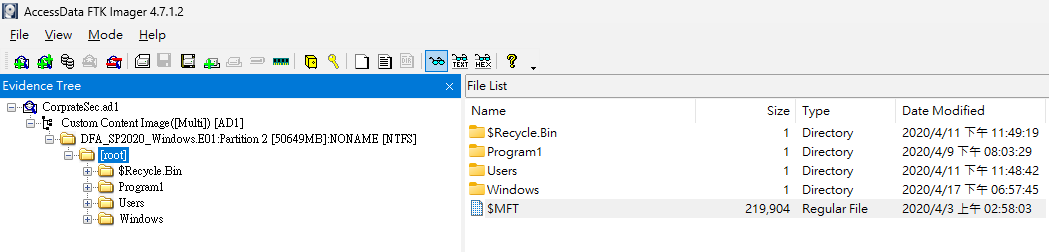

我是直接在/root的地方export出$MFT file，然後去看magic header(FILE0)的數量有多少(219811)，但這樣不準確(不清楚為甚麼)，我記得之前@Jimmy說過

$MFT長度一段就是1024 Bytes(0x400)

所以我想說可以把最後出現的位置除已0x400可能就是答案$\to 0xd6aac00/0x400=219819.0$

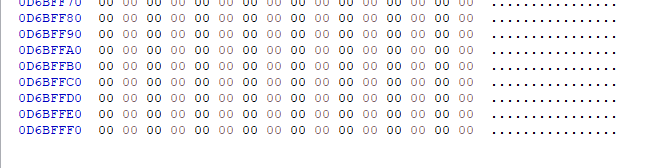

• 方法一 不過以上的方法是確實可行的，因為計算entries不是只要看有多少有紀錄的File，而是整個$MFT有多少空間，意思是我們要看最後位址是多少再除以0x400，而不是只算到最後一個FILE0的地方就直接除已0x400 該檔案的最後位址是在0xd6bfff0 $(0xd6bfff0+0x10)/0x400 = 219904.0$ 加上0x10是因為要算出完整的0x400才算一個，也就是我們要算最後一個就要padding
• 方法二 後來參考¹才知道比較正確的解法
  1. clone mftdump
  2. create python 2 environment
  3. dump mft file

     1 2	$ conda activate py27 $ python mftdump.py "MFT" > MFTdumpOutput.txt

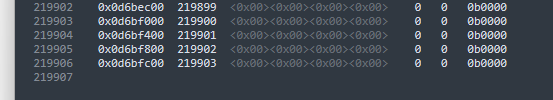

  4. 看解出多少entries再扣掉最前面兩行不算的部分 $219906-2=219904$

:::spoiler Flag Flag: 219904 :::

==Q27==

Tim wanted to fire an employee because they were ……?(Be careful what you wish for)

Exploit

呈第15題，直接看Tim的瀏覽紀錄就會知道了

:::spoiler Flag Flag: stinky :::

Reference

1. CyberDefenders: CorporateSecrets ↩ ↩²
