Droidbot

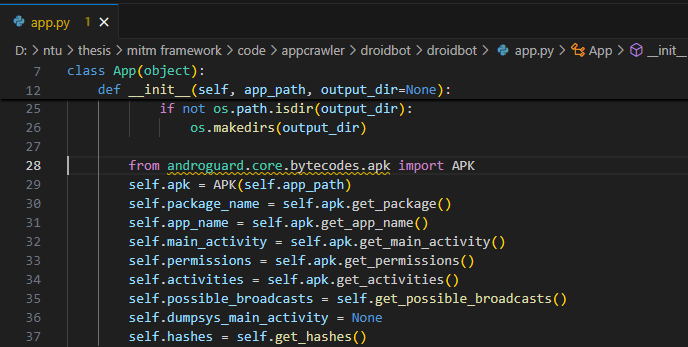

Official Github Repo其實也說明得非常清楚，但在初次執行的時候可能會出現以下問題，按照 APP自動化全站爬取探索 ，只要修改./droidbot/app.py的line 28就可以了

Execution Problem

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
$ droidbot -a ./base.apk/Mattermost.apk -grant_perm -script ./my_pass_login_script.json -keep_app
INFO:Device:disable minicap on sdk >= 32
Traceback (most recent call last):
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\droidbot.py", line 96, in __init__
    self.app = App(app_path, output_dir=self.output_dir)
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\app.py", line 28, in __init__
    from androguard.core.bytecodes.apk import APK
ModuleNotFoundError: No module named 'androguard.core.bytecodes'
[CONNECTION] ADB is disconnected
WARNING:DroidBotIme:Failed to disconnect DroidBotIME!
Traceback (most recent call last):
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\droidbot.py", line 96, in __init__
    self.app = App(app_path, output_dir=self.output_dir)
               ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\app.py", line 28, in __init__
    from androguard.core.bytecodes.apk import APK
ModuleNotFoundError: No module named 'androguard.core.bytecodes'

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
  File "\?\C:\Users\berni\anaconda3\envs\mitmproxy\Scripts\droidbot-script.py", line 33, in <module>
    sys.exit(load_entry_point('droidbot', 'console_scripts', 'droidbot')())
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\start.py", line 145, in main
    droidbot = DroidBot(
               ^^^^^^^^^
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\droidbot.py", line 116, in __init__
    self.stop()
  File "d:\ntu\thesis\mitm framework\code\appcrawler\droidbot\droidbot\droidbot.py", line 191, in stop
    if hasattr(self.input_manager.policy, "master") and \
               ^^^^^^^^^^^^^^^^^^^^^^^^^
AttributeError: 'NoneType' object has no attribute 'policy'


1
2
# from androguard.core.bytecodes.apk import APK
from androguard.core.apk import APK

How to use

一般使用

1
$ droidbot -a <path to apk> -o <path to output>

如果遇到任何出現寫入資訊錯誤或是decode出現錯誤的狀況，要直接看stack回推，並且把encoding改成utf-8，以autodroid為例是在./droidbot/device_state.py的#63，加入encoding='utf-8', droidbot的忘記在哪裡改了，總之也是同樣的問題

1
2
3
4
5
6
7
8
9
10
11
12
13
    def _save_important_view_ids(self):
        _, _, _, important_view_ids = self.get_described_actions(remove_time_and_ip=False)
        ids_path = self.device.output_dir +'/states_view_ids'
        if not os.path.exists(ids_path):
            os.mkdir(ids_path)
        # if not isinstance(current_state, str):
        #     current_state_str = current_state.state_str
        # else:
        #     current_state_str = current_state
        important_view_id_path = self.device.output_dir +'/states_view_ids/'+ self.state_str + '.txt'
        f = open(important_view_id_path, 'w', encoding='utf-8')
        f.write(str(important_view_ids))
        f.close()
